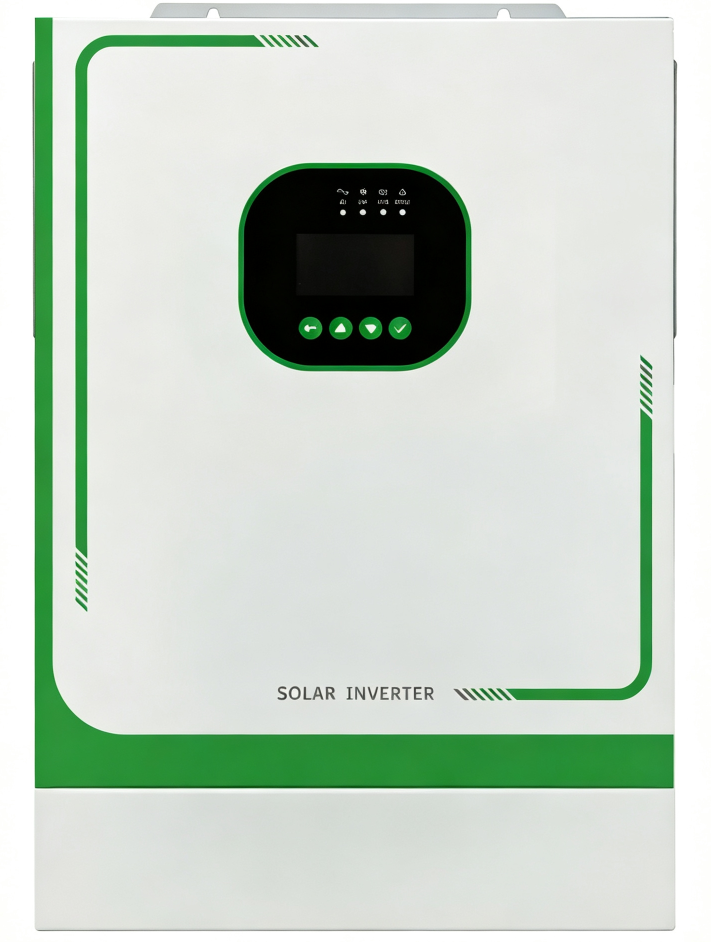

Hybrid Inverter Series

The Worthus Hybrid Inverter Series is a versatile residential energy management solution that seamlessly integrates solar PV, battery storage, and grid power. Available in single phase models from 3.6kW to 6kW and three phase models from 5kW to 15kW, these inverters are designed to maximize solar self-consumption, reduce electricity bills, and provide reliable backup power during grid outages. Featuring dual independent MPPT trackers with ultra-wide voltage ranges, the inverters extract maximum power from solar panels even under partial shading or different roof orientations. The built-in AFCI technology provides industry-leading arc fault protection, eliminating fire hazards. The inverters support seamless integration with Worthus LiFePO4 battery systems, enabling sophisticated energy management strategies including time-of-use optimization, peak shaving, and emergency backup power. With comprehensive remote monitoring capabilities through 4G, WiFi, and RS485 connectivity, the Worthus Hybrid Inverter delivers the performance, safety, and intelligence required for modern energy-independent homes.

Common Specifications:
• MPPT Number: 2
• Battery Voltage Range: 42 – 60V DC
• Max. Charge/Discharge Current: 50A / 50A (HS) | 80A / 80A (HT)
• Battery Compatibility: LiFePO4 / Lead-acid (selectable)
• Rated Output Voltage: 230V AC (single phase) | 380/400V AC (three phase)
• Protection Rating: IP66
• Safety Protection: AFCI arc fault protection, AC/DC Type II surge protection, anti-islanding, grounding fault monitoring
• Operating Temp: -25°C to 60°C
• Communication: 4G / WiFi / RS485 / CAN
• Special Features: Time-of-use energy management, emergency backup power, cloud monitoring platform, seamless battery integration
• Certifications: CE, VDE-AR-E 4105, IEC 62109, AS 4777
• Warranty: 5 years (extendable to 10 years)
